Product datasheet


F002-Z-05-PK

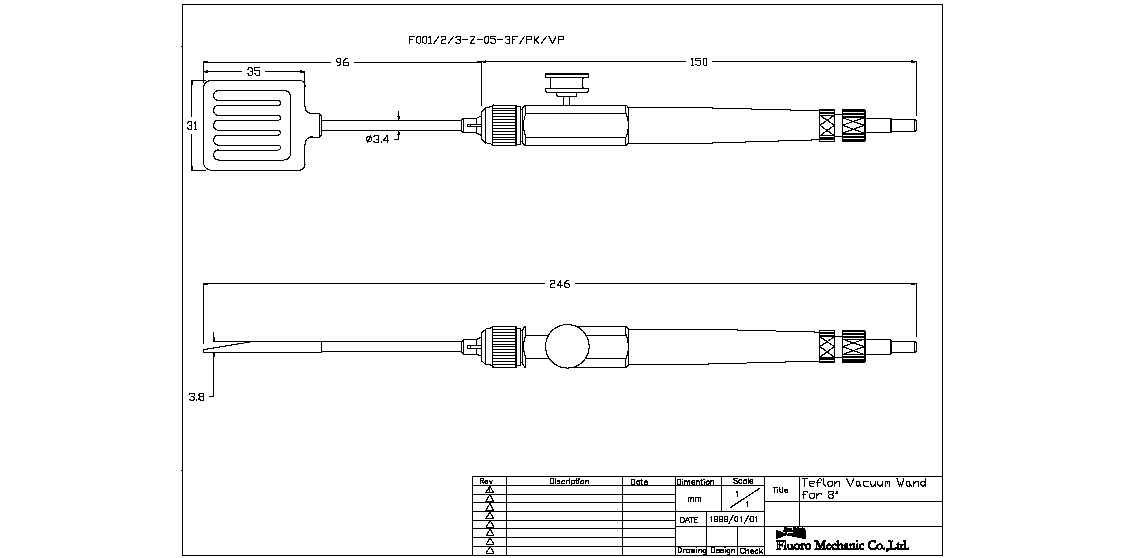

PTFE vacuum wand for up to 8 inch (200 mm) wafers, normally open, PEEK tip

Complete vacuum wand including tip for wafer handling. PTFE body. Normally open push-button valve (press to release the wafer). Compatible with stand 658 or 659. The tip can be rotated and locked in position. Suitable for up to 8 inch (200 mm) wafers

  • Teflon (PTFE) provides excellent chemical resistance
  • Normally open push-button valve (press to release the wafer).
  • Gross weight including packaging: 95 g


ModelF002-Z-05-PK Operation
