Product datasheet

F002-X-05-PK

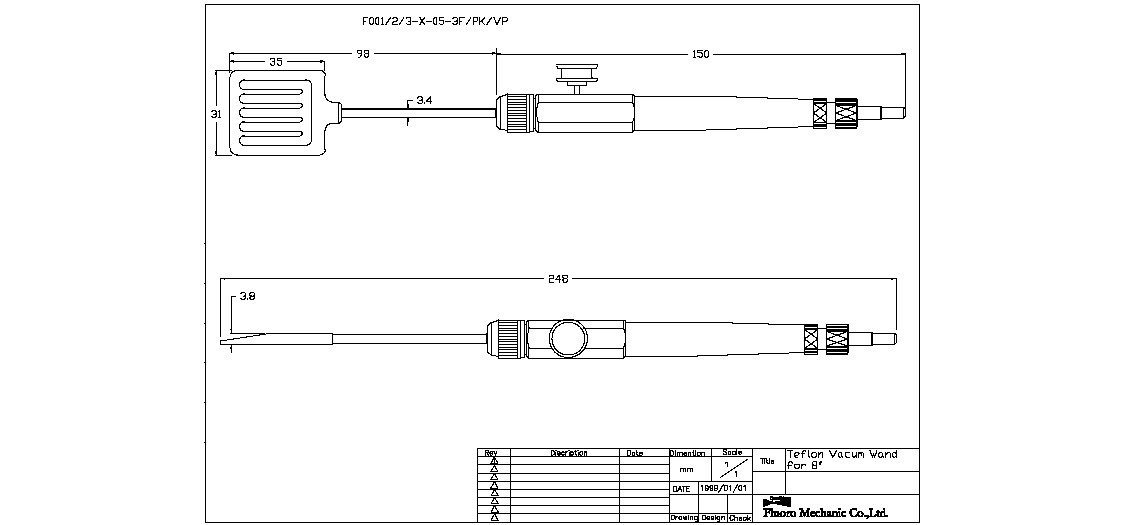

PTFE vacuum wand for up to 8 inch (200 mm) wafers, normally open, swivel, PEEK tip


£175.00

$233.00    €233.00

Add to Cart

Please register or login to buy this product.

Complete vacuum wand including tip for wafer handling. PTFE body. Normally open push-button valve (press to release the wafer). Vacuum is automatically switched off when placed in stand 658 or 659. The tip can be rotated, swivelled up to 30° and locked. Suitable for up to 8 inch (200 mm) wafer handling. With PEEK tip. Wand body and tip available separately. The vacuum tube connector allows push-on connection to any flexible tubing from 2.5 mm to 4 mm ID. The tube connector has a quick connection feature that allows wands to be interchanged rapidly.

  • Teflon (PTFE) provides excellent chemical resistance.
  • Normally open push-button valve (press to release the wafer).
  • Tip may be swivelled up to 30° and locked.
  • Gross weight including packaging: 95 g.


ModelF002-X-05-PK
OperationNormally open push-button valve (press to release the wafer)
Length248 mm
Net weight40 g
