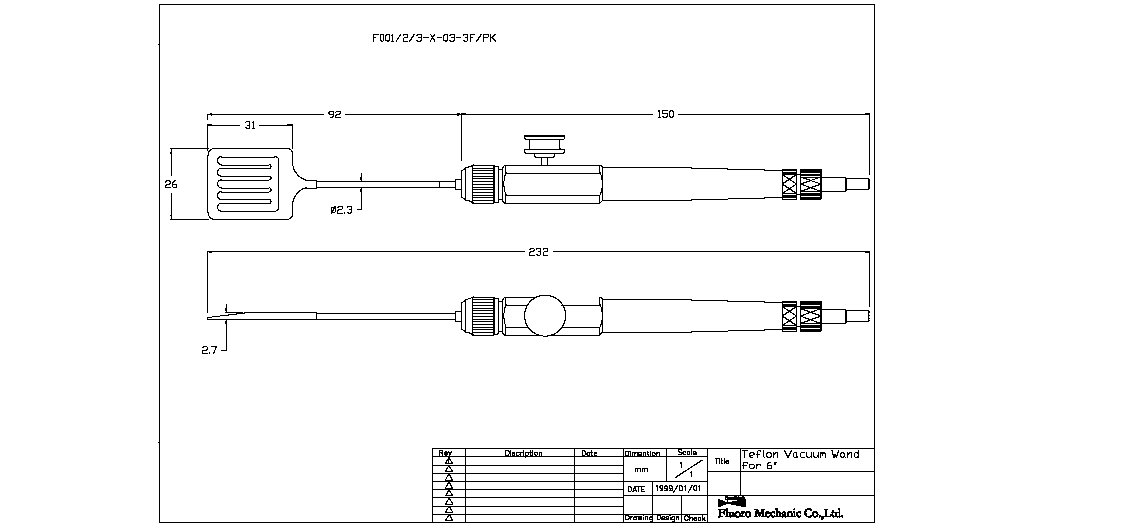

Complete vacuum wand including tip for wafer handling. PTFE body. Normally open push-button valve (press to release the wafer). Vacuum is automatically switched off when placed in stand 658 or 659. The tip can be rotated, and swivelled up to 30°, and locked. Suitable for up to 6 inch (150 mm) wafer handling. With PEEK tip. Wand body and tip available separately. The vacuum tube connector allows push-on connection to any flexible tubing from 2.5 mm to 4 mm ID. The tube connector has a quick connection feature that allows wands to be interchanged rapidly.
|Operation||Normally open push-button valve (press to release the wafer).|
|Net weight||36 g|
