Product datasheet

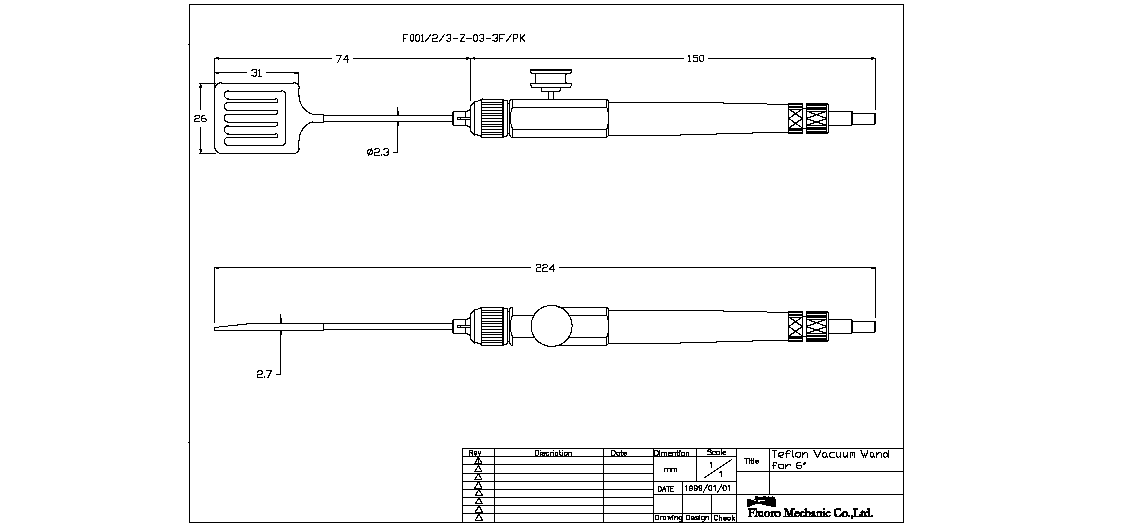

F002-Z-03-PK

PTFE vacuum wand for up to 6 inch (150 mm) wafers, normally open, PEEK tip


£169.00

$225.00    €225.00

Add to Cart

Please register or login to buy this product.

Complete vacuum wand including tip for wafer handling. PTFE body. Normally open push-button valve (press to release the wafer). Vacuum is automatically switched off when placed in stand 658 or 659. The tip can be rotated and locked in position. Suitable for up to 6 inch (150 mm) wafer handling. With PEEK tip. Wand body and tip available separately. The vacuum tube connector allows push-on connection to any flexible tubing from 2.5 mm to 4 mm ID. The tube connector has a quick connection feature that allows wands to be interchanged rapidly.

  • Teflon (PTFE) provides excellent chemical resistance
  • Normally open push-button valve (press to release the wafer).
  • Gross weight including packaging: 70 g.


ModelF002-Z-03-PK
OperationNormally open push-button valve (press to release the wafer).
Length224 mm
Net weight36 g
