Product datasheet

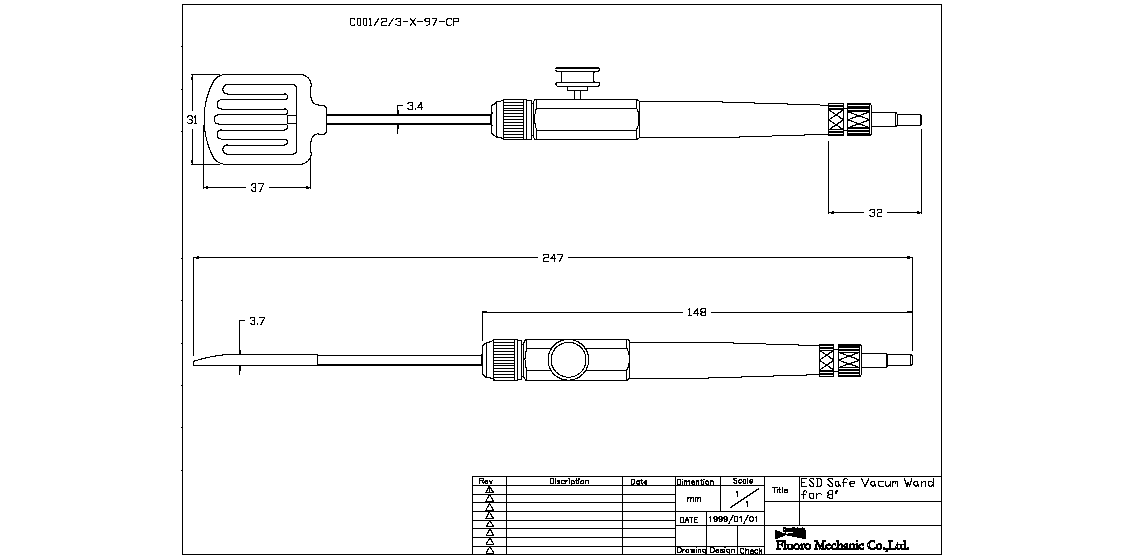

C002-X-97-CP

ESD safe vacuum wand for up to 8 inch (200 mm) wafers, normally open, swivel

Complete vacuum wand including tip for wafer handling. ESD safe conductive nylon body. Normally open push-button valve (press to release the wafer). Vacuum is automatically switched off when placed in stand 658 or 659. The tip can be rotated, and swivelled up to 30°, and locked. Suitable for up to 8 inch (200 mm) wafer handling. With conductive PEEK tip. Wand body and tip available separately. The vacuum tube connector allows push-on connection to any flexible tubing from 2.5 mm to 4 mm ID. The tube connector has a quick connection feature that allows wands to be interchanged rapidly.

  • Normally open push-button valve (press to release the wafer).
  • A resistance value of 106 to 108 ohms provides optimum static protection
  • Tip may be swivelled up to 30° and locked
  • Gross weight including packaging: 95 g


ModelC002-X-97-CP
OperationNormally open push-button valve (press to release the wafer).
Length247 mm
Net weight28 g
