Product datasheet


C001

ESD safe die/small parts handling wand body, normally closed

Vacuum wand without tip for handling small objects, including semiconductor dies, components, etc. Manufactured from ESD safe material. The valve is normally closed, so press the button to pick up. The vacuum tube connector allows push-on connection to any flexible tubing from 2.5 mm to 4 mm ID. ESD safe flexible tubing is available for use with this wand (part numbers 851-L, 851-M and 850-M). The tube connector has a quick connection feature that allows wands to be interchanged rapidly. Tip may be swivelled and rotated ±30° in all directions and locked in position. Compatible with all nozzles, suction cups and slit tips (shown with typical nozzle). Fits stands 651 and 652.

  • Suitable for any of our wide range of nozzles, suction cups and other tips with M3 fitting.
  • Normally closed valve (press button to pick up).
  • Tip may be swivelled and rotated ±30° in all directions and locked in position.
  • Fits stands 651 and 652.
  • Gross weight including packaging: 65 g
  • Material: Conductive Nylon


ModelC001
OperationNormally closed push-button valve (press to pick-up).

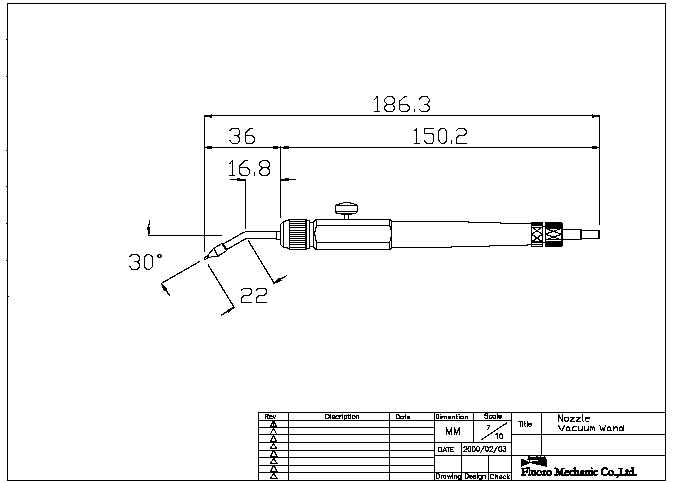

Length186 mm
Net weight23 g
